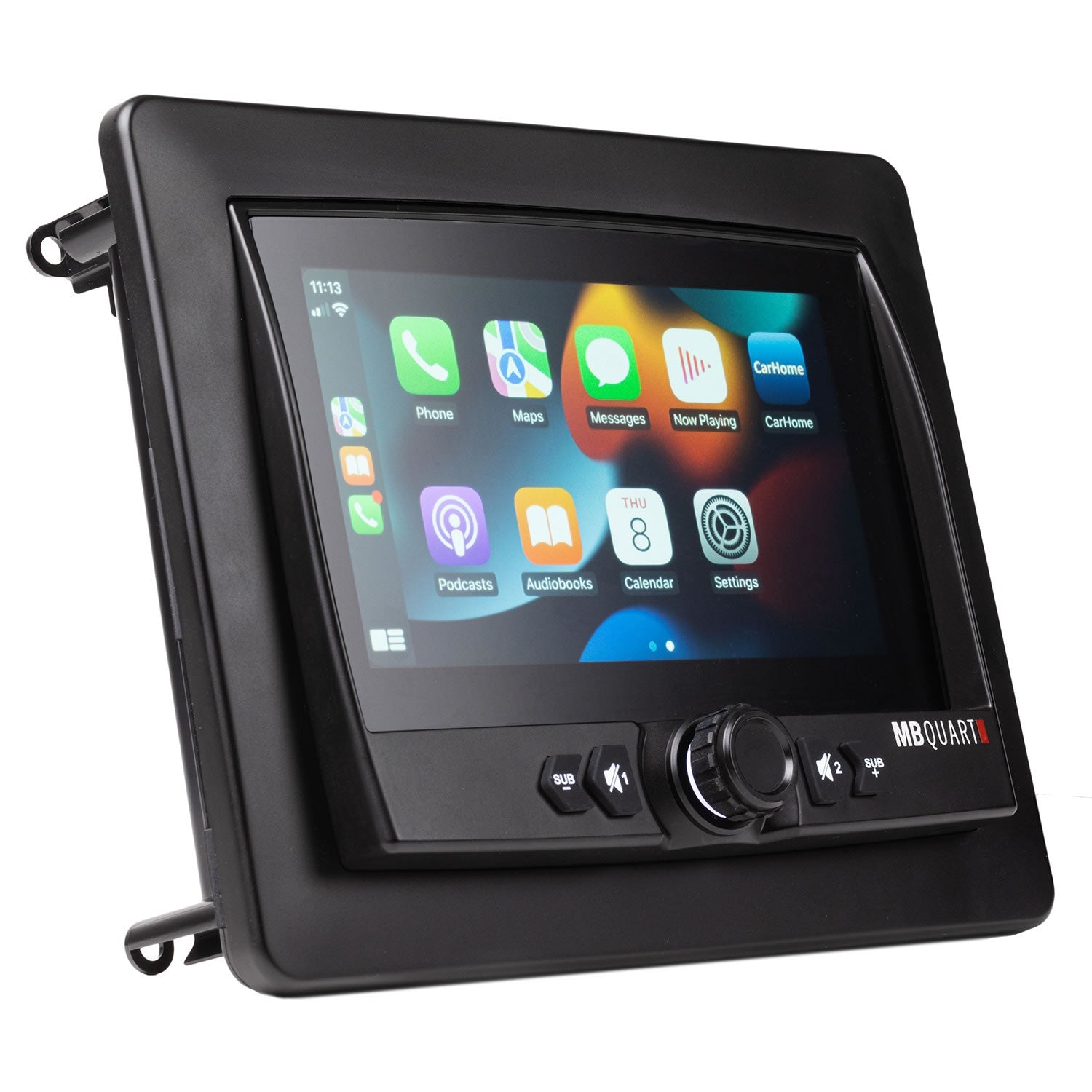

MB Quart GMR7V1 7-Inch Waterproof Touchscreen CarPlay Source Unit
MB Quart GMR7V1 7-Inch waterproof touchscreen source unit features Apple® CarPlay®, which brings more control and integration with your iPhone. This unit also includes a built-in auxiliary switching system, RGB lighting controller, AM/FM/WB/Bluetooth, dual zone audio control, dual video inputs, one video output, two USB inputs, one aux input, and pre-amp outputs.
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 10.75 × 9.5 × 5 in |
| Type |
Source Unit |
| Brand |
MB Quart |
| Series |
GMR |
| Category |
Marine, Powersports, RV |
| Condition |
New |
| Color |
Black |
| UTV Source Available |
Yes |
| UTV Source Link |
https://www.utvsource.com/mb-quart-7-waterproof-touchscreen-carplay-source-unit/ |
| Warranty |
1 Year |
| IPX Rating |
IP67 |
| Compatible Vehicles |
Universal |
| Source Unit Tuner Section FM Stereo Frequency Range |
87.5MHz-107.9MHz |
| Source Unit Bluetooth Range (ft) |
32 |
| Source Unit Frequency Response (Aux In) |
20Hz-20kHz |
| Source Unit Pre-amp Outputs (Y/N #) |
3 Pair Front/Rear/Subwoofer, Yes |
| Source Unit Pre-amp Voltage |
4.0V |
| Source Unit Minimum Impedance (ohms) |
150ohm |
| Source Unit Display Type |
7-Inch Full Color LED Touchscreen Panel |
| Source Unit Dimensions Mounting Hole (in) |
6.5 x 8.25 |
| Source Unit Dimensions Total Mounting Depth (in) |
2.5 |

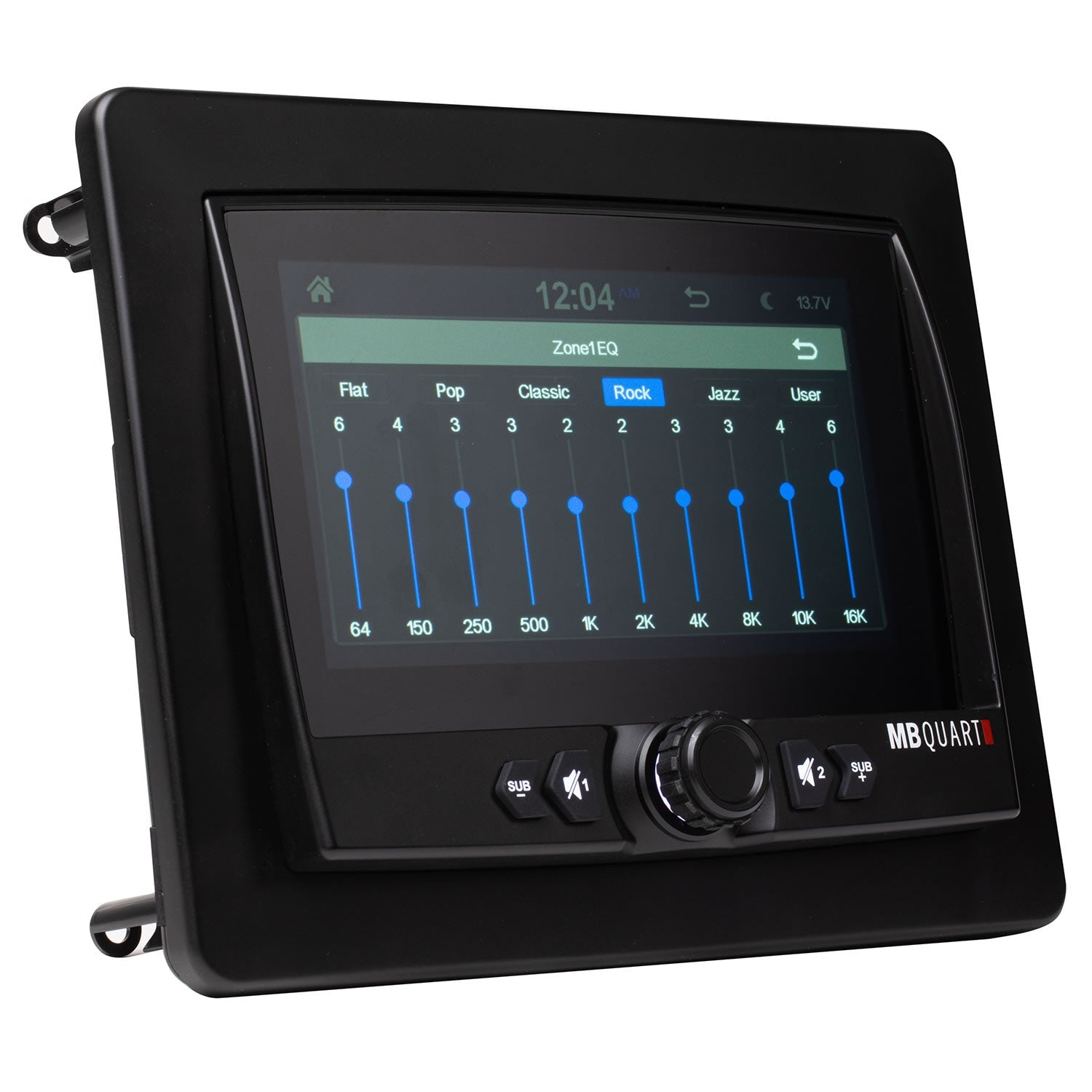

| Additional Details | Preamp Output Voltage: 4 volts; Dual Zone Capability between Preamp Outputs and Built-in Power; Independent Subwoofer Level Control with Selectable Low Pass Filter; 10-Band Graphic EQ (64, 150, 250, 500, 1K, 2K, 4K, 6K, 10K, and 16K) |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment |
Universal |
|---|---|
| Marine Grade Protection / IPX Rating |
Meets or exceeds IPX67 requirments for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. |
| Apple® Control |
Wired Apple® CarPlay® |
| Source Type |
AM/FM/WB/Bluetooth® allows all access to radio stations and content from Bluetooth enabled devices. |
| Input Types |
Bluetooth, RCA, USB: Nearly nothing the device cannot play. |
| Control Buttons |
Unit has a master knob, zone mute buttons, sub level buttons, and a full touchscreen 7-inch display. |
| Bluetooth® Connect |
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the source unit without a complicated pairing process. |
| Secure Simple Pairing™ |
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ |
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "GMR7V1" from your Bluetooth menu and you are connected, QUICKLY. |
| Control Method |
Unit is adjusted by a master knob, 4 control buttons, and a 7 inch touchscreen panel. |
| AM/FM Tuner Presets |
AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations each. |
| Frequency Range |
USA Frequency: FM87.5 – 107.9MHz / AM530 – 1710kHz |
| RDS Information |
Yes |
| Weather Band |
Includes built-in weather band radio. NOAA NWR Weather Band Frequency: Preset (162.400MHz, 162.425MHz, 162.450MHz, 162.475MHz, 162.500MHz, 162.525MHz, 162.550MHz). |
| Video Input |

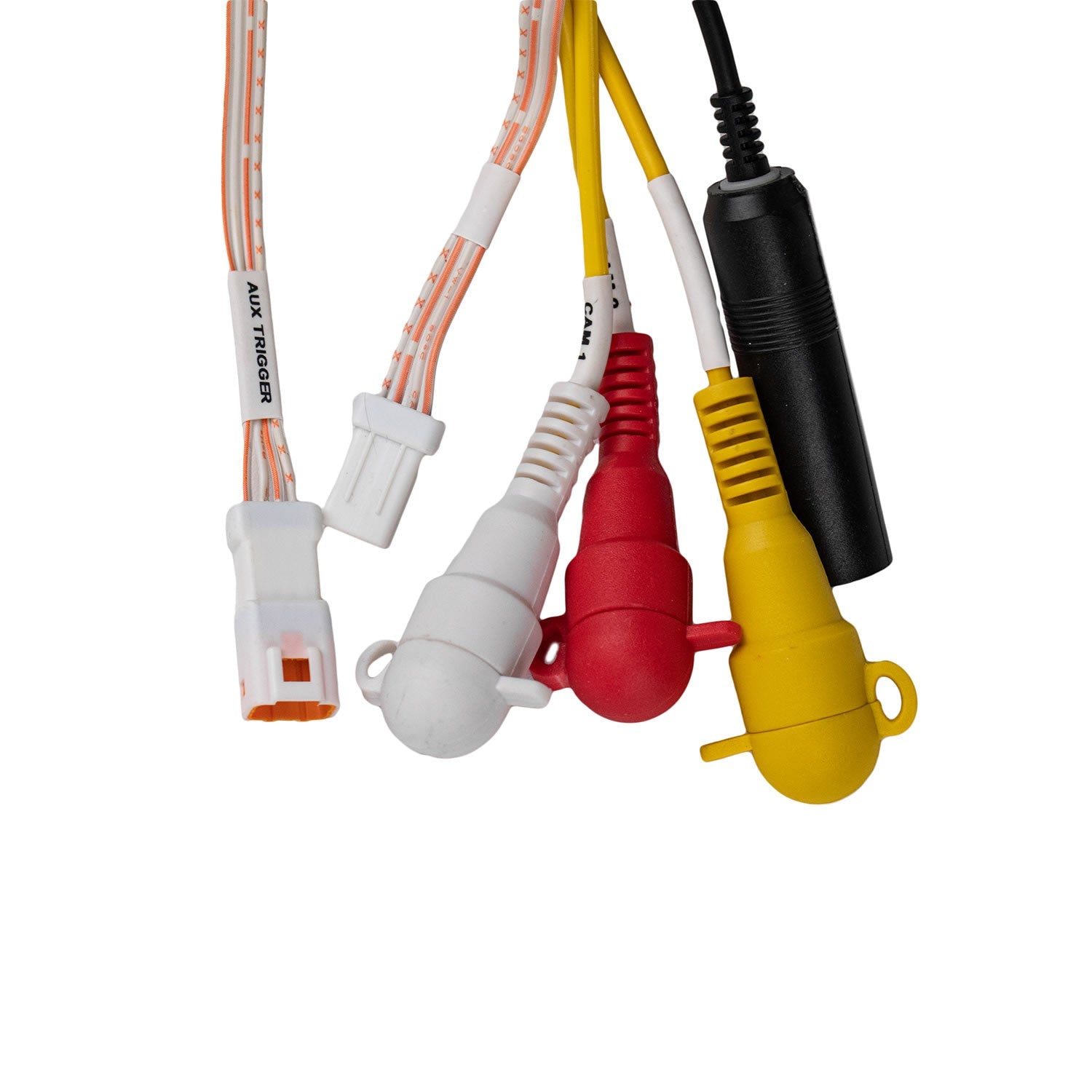

Two video camera inputs via a RCA style connector (No Audio). One video output via a RCA style connector (No Audio). |
| Video Input Trigger |
Two ground wire triggers, one for each video input. |
| Additional Inputs |

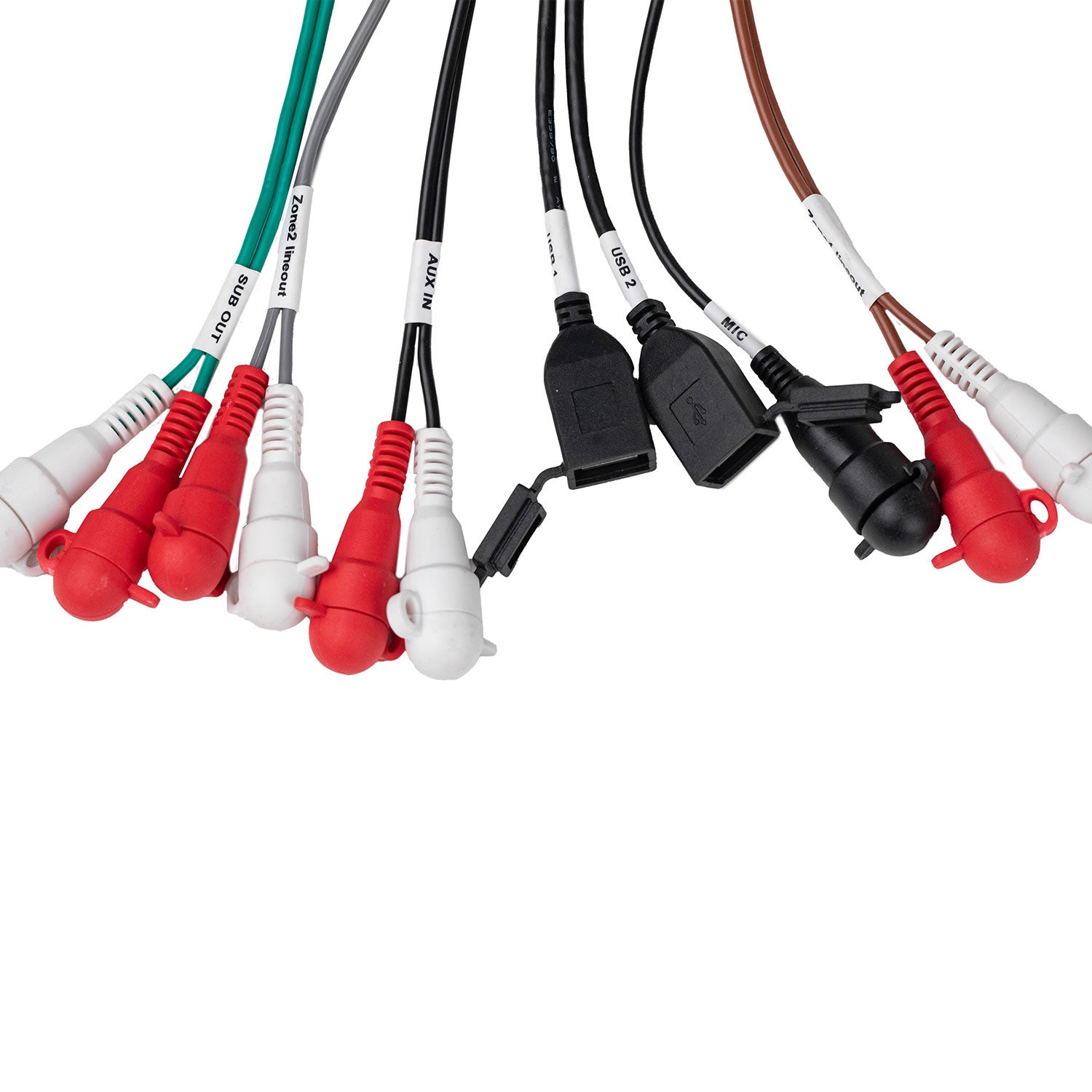

1 Pair (Aux), 1 Composite Video (Camera), 1 Microphone Input |
| USB / Apple® / Charging Port |
Two USB ports - USB 1(Gray) For Music. USB 2(Black) for iPhone. |
| Bluetooth® Version |
Version 5.0 |
| Album Art |
Yes |
| Main Connector Type |
MOLEX connector for simple installation and removal of unit when needed. |
| Dual Audio Zone Capability |
Control volume in two different areas independently, such as passenger area and tower speakers. |
| Media Screen |
7-inch high-contrast touchscreen display |
| Additional Features |
Built-In Auxiliary Switching System: 4 aux trigger outputs 300mA MAX; Built-In RGB Lighting Controller: 500mA MAXX |
