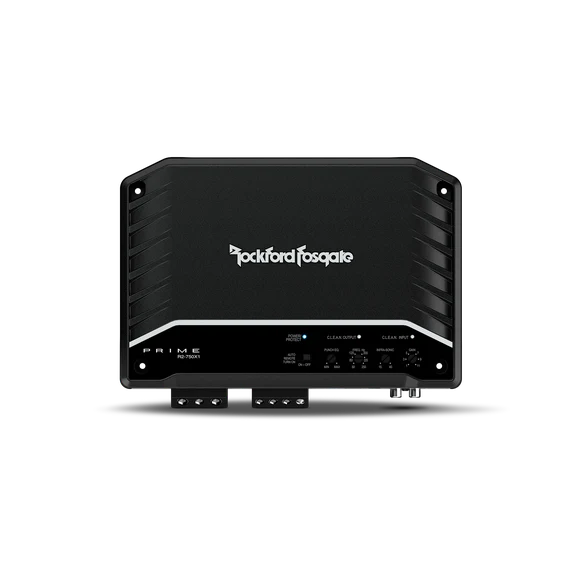

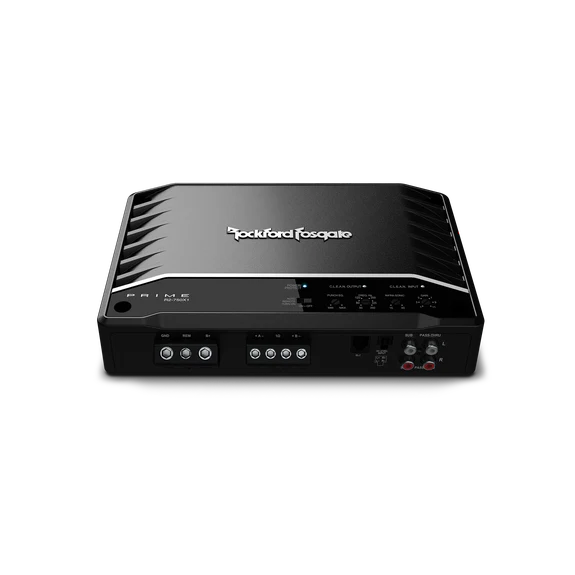

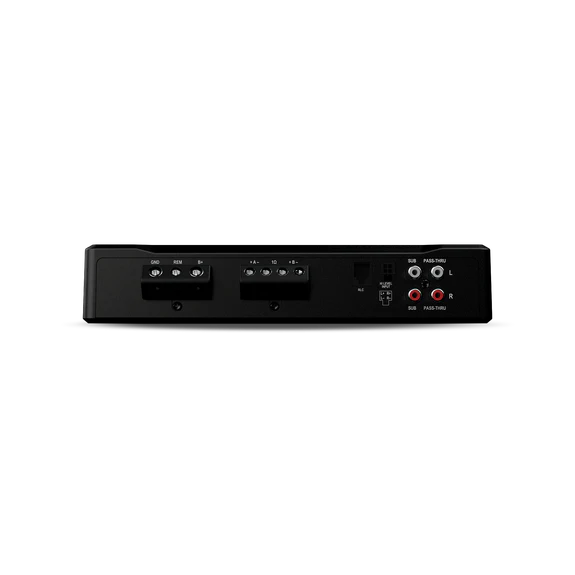

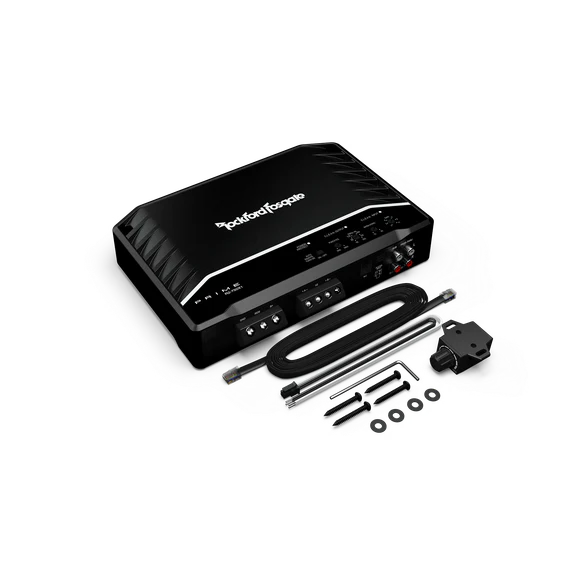

Rockford Fosgate Prime R2-750X1 750 Watt Monoblock Amplifier
The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
FEATURES AT A GLANCE
- Variable Input Gain adjustment level
- High Level Input Capable
- Balanced Differential Inputs with RCA Pass Through Outputs
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)

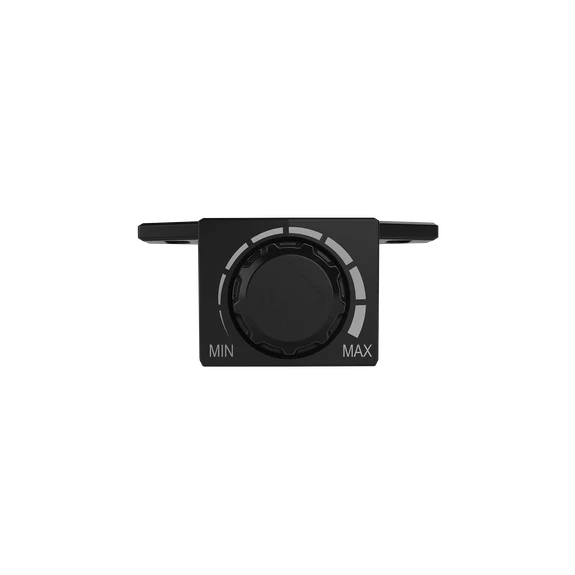

- Includes RLC Remote Level Control
- Cast aluminum heat sink
- Class-D Topology
- CEA-2006 Compliant & CE Compliant
- Top Mounted Control Panel
- Continuously Variable On Board Punch EQ
- Features C.L.E.A.N. Set-up
- Short Circuit & Over Current Protection
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Variable Infrasonic Filter
- 1 Year Warranty.
(Sum of Rated Power)
(RMS Continuous Power)
500 Watts x 1 @ 2Ω
750 Watts x 1 @ 1Ω
(PVC/PowerCube®)
545 Watts x 1 @ 2Ω
830 Watts x 1 @ 1Ω
High-Level: 450 mV - 12 V
2Ω: <1.0%
1Ω: <1.0%
High-Level: 4-Pin Molex
(Pass-Thru active with RCA or Hi-Level input)
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
C.L.E.A.N. IN (Red)
C.L.E.A.N. OUT (Blue/Red)
(not included)
(4.9 cm x 17.3 cm x 25.5 cm)
