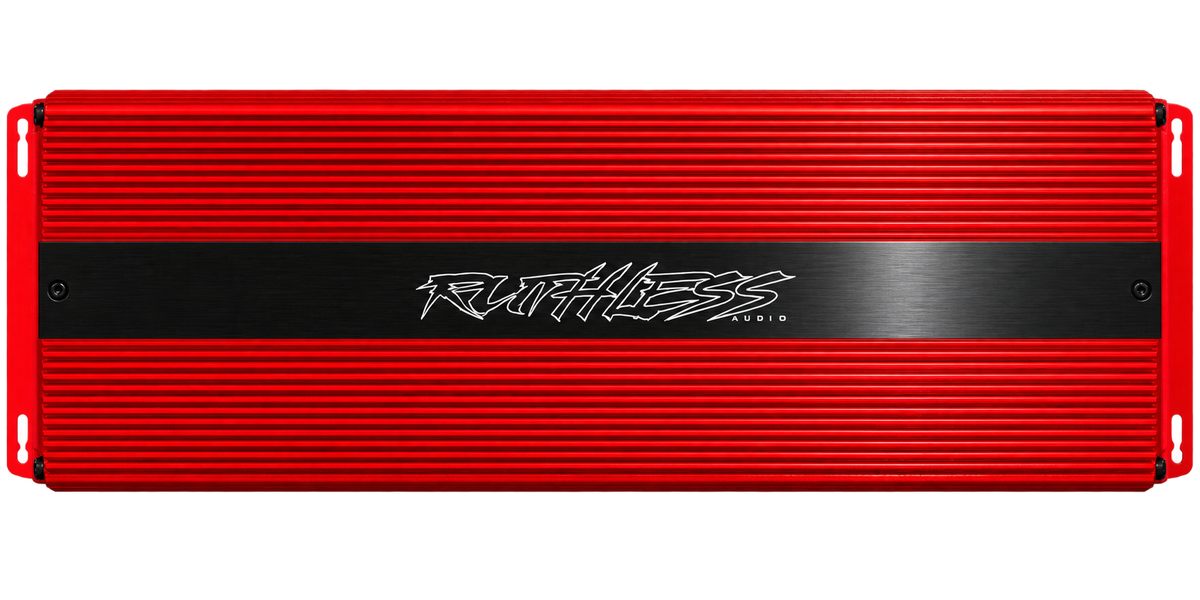

Ruthless Audio 12500.1 Red 12,500 Watt Monoblock Amplifier
The Ruthless Audio 12500.1 Red 12,500-Watt Monoblock Amplifier is for a subwoofer build planned around substantial power. With a listed output of 12,500W RMS at 1 ohm at 14.4V, it belongs in a system where the drivers, enclosure, charging system, and installation are chosen together. If your goal is competition-minded bass, start with the total system plan rather than the amplifier wattage alone.
The published ratings are 12,500W RMS @ 1Ω, 7,500W RMS @ 2Ω, and 4,000W RMS @ 4Ω, all at 14.4V. Tiffany-style locking RCA inputs help secure the signal connection, while 1/0 AWG power terminals accommodate large-gauge cable. Input sensitivity is listed at 0.2V–6V. The 10Hz–250Hz frequency response and 0–180° phase control provide low-frequency setup options, and listed THD is less than 0.01% at 4Ω. These are specifications for the stated conditions, not a promise of identical output in every vehicle.
A 12,500W-rated amplifier calls for serious electrical planning and thoughtful heat management. Match your subwoofers' combined power handling and final wired impedance to the amplifier's published ratings. Choose a ventilated mounting location and confirm clearance, cable access, and protection before you install. The existing listing does not provide physical dimensions or a fuse rating, so request those details before finalizing your layout and fuse plan.
Why Choose the Ruthless Audio 12500.1 Red Monoblock Amplifier?
- 12,500W RMS @ 1 Ohm — Listed output at 14.4V for a high-power subwoofer system.
- 7,500W RMS @ 2 Ohms / 4,000W RMS @ 4 Ohms — Published ratings at additional loads help you compare wiring options.
- System-Building Power — Its output makes charging capacity, battery reserve, and voltage monitoring central to the build.
- Subwoofer-Focused Design — A single-channel amplifier intended for a dedicated low-frequency stage.

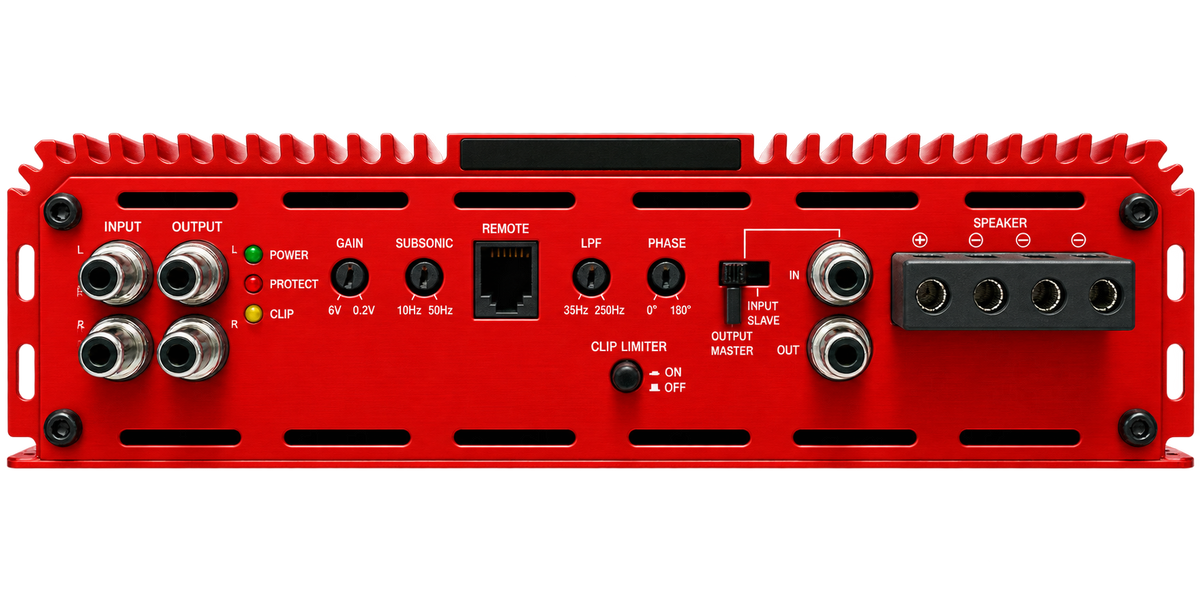

- Tiffany-Style Locking RCA Inputs — Locking connectors help keep the signal cable seated.

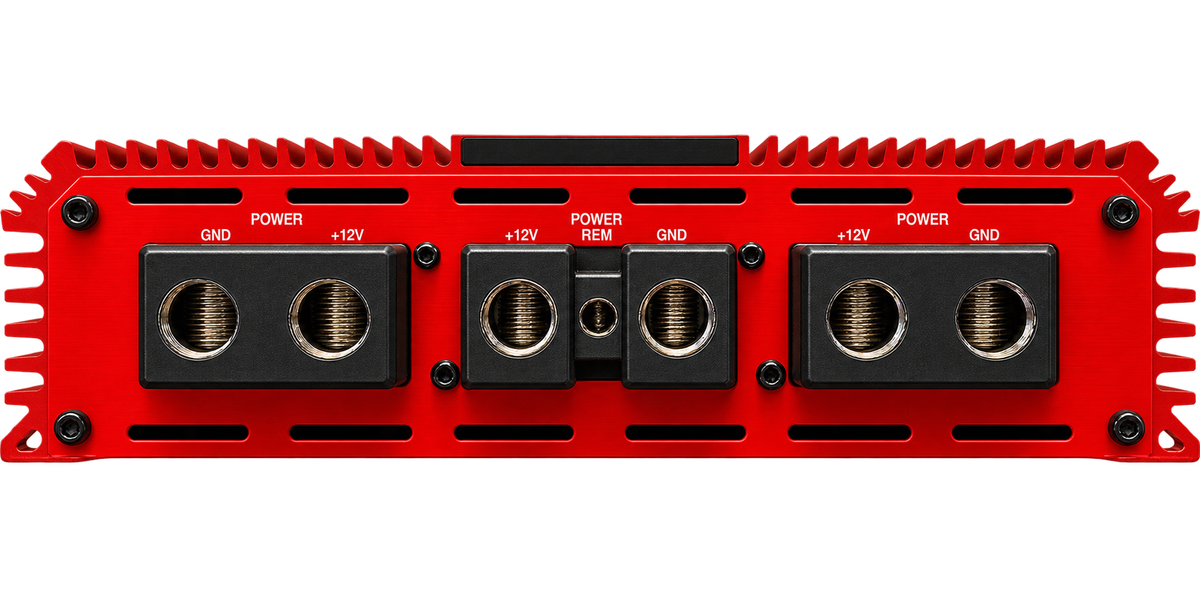

- 1/0 AWG Power Terminals — Terminals sized for large-gauge power connections; verify the number and layout of runs against the manufacturer's instructions.
- 10Hz–250Hz Frequency Response — Listed response suited to low-frequency applications.
- THD < 0.01% @ 4Ω — The stated distortion specification at its specified load.
Electrical & Installation Recommendations
Do not treat an alternator rating alone as proof that a system can sustain this amplifier's output. The earlier listing suggests a 300A+ high-output alternator, Big 3 upgrade with 1/0 AWG cable, and substantial AGM or lithium battery reserve as starting considerations. Actual needs depend on the vehicle, listening duty cycle, voltage target, and all other electrical loads. Have a qualified installer calculate cable sizing, battery capacity, charging output, grounding, and appropriate protection for the final build. Monitor voltage under load and follow the manufacturer's installation requirements.
For subwoofer pairing, consider high-power drivers with suitable RMS handling, excursion, voice-coil options, and an enclosure built for your goals. The previous guidance points to competition drivers rated at 4,000W RMS or more, but the right number of drivers depends on their combined ratings and the target impedance. Calculate the final impedance from the exact number of subs, coils per sub, coil impedance, and series/parallel connections; simply placing two dual-voice-coil subs in parallel does not automatically produce a 1Ω load. Use a compatible DSP or active crossover for low-pass and subsonic control if your setup requires it. Confirm the manufacturer's power, ground, and fuse guidance before wiring.
Full Specifications
| Specification | Value |
|---|---|
| RMS Power @ 1Ω (14.4V) | 12,500W |
| RMS Power @ 2Ω (14.4V) | 7,500W |
| RMS Power @ 4Ω (14.4V) | 4,000W |
| Channels | 1 (Monoblock) |
| Frequency Response | 10Hz – 250Hz |
| Phase Control | 0° – 180° |
| THD | < 0.01% @ 4Ω |
| Input Sensitivity | 0.2V – 6V |
| RCA Inputs | Tiffany-Style Locking RCA |
| Power Input Gauge | 1/0 AWG |
| Warranty | 1 Year Standard / 2 Year Extended Available |
Note: Physical dimensions and fuse rating were not supplied in this listing. Contact us for a full spec sheet before planning the installation.
Frequently Asked Questions
Q: What electrical upgrades are needed to run the 12500.1 Red at full power?
A: Plan a high-output charging system, appropriately sized Big 3 and amplifier wiring, battery reserve, and protective fusing based on the vehicle and duty cycle. The earlier 300A+ alternator and 1/0 AWG suggestions are planning points, not a universal minimum that guarantees full output.
Q: What subwoofers pair best with the Ruthless Audio 12500.1 Red?
A: Look for high-power subwoofers whose combined RMS ratings, voice-coil configuration, and enclosure design suit your target load and output. Check each driver's specifications before choosing the number of subs.
Q: How do I wire my subwoofers to achieve a 1-ohm load?
A: It depends on the number of subwoofers, the number of voice coils in each, and each coil's impedance. Calculate the completed series/parallel circuit and verify the load with a qualified installer before connecting the amplifier.
Q: What is the difference between the standard and extended warranty?
A: The listing shows a one-year standard warranty and a two-year extended option. Check the current terms and eligibility for coverage details before purchase.
