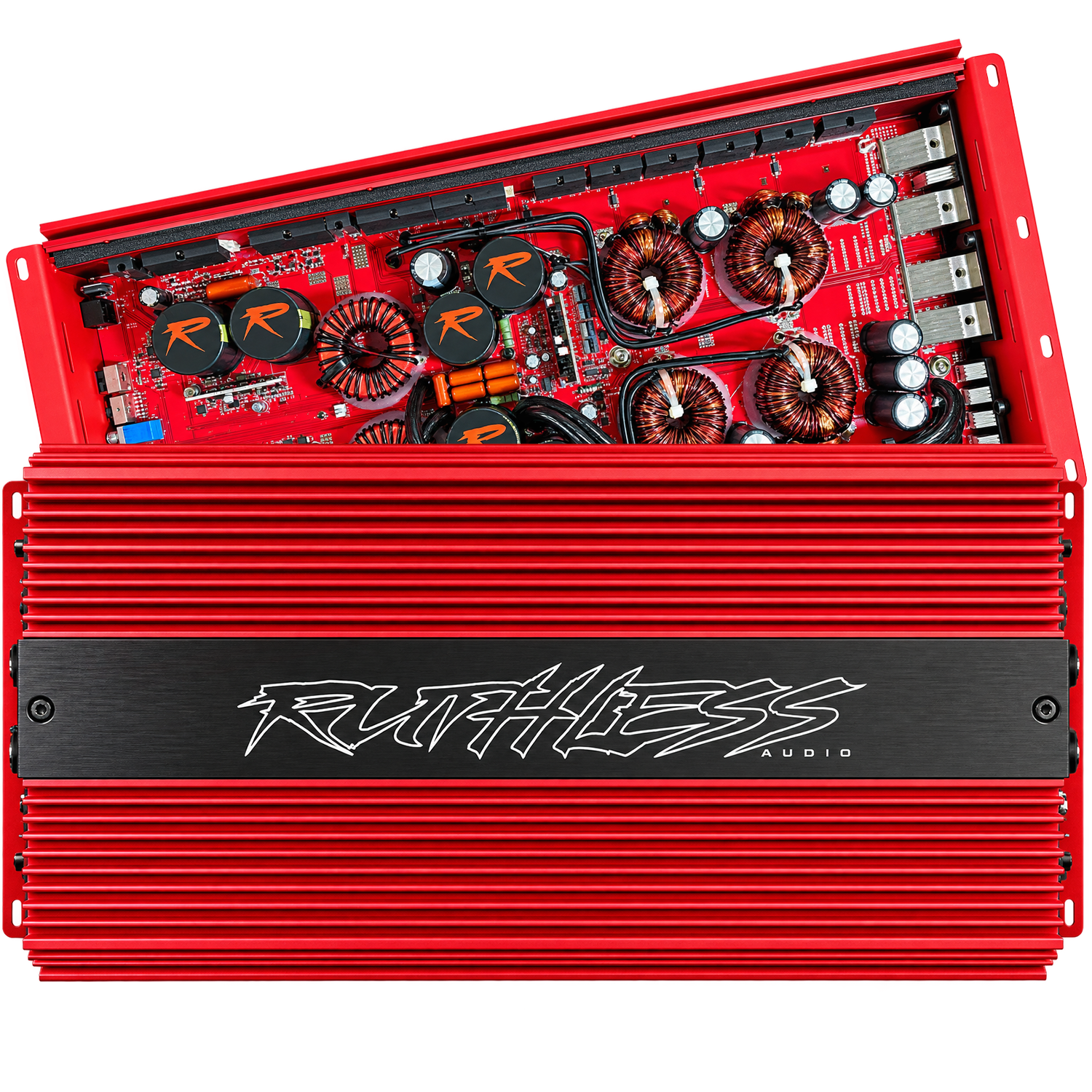

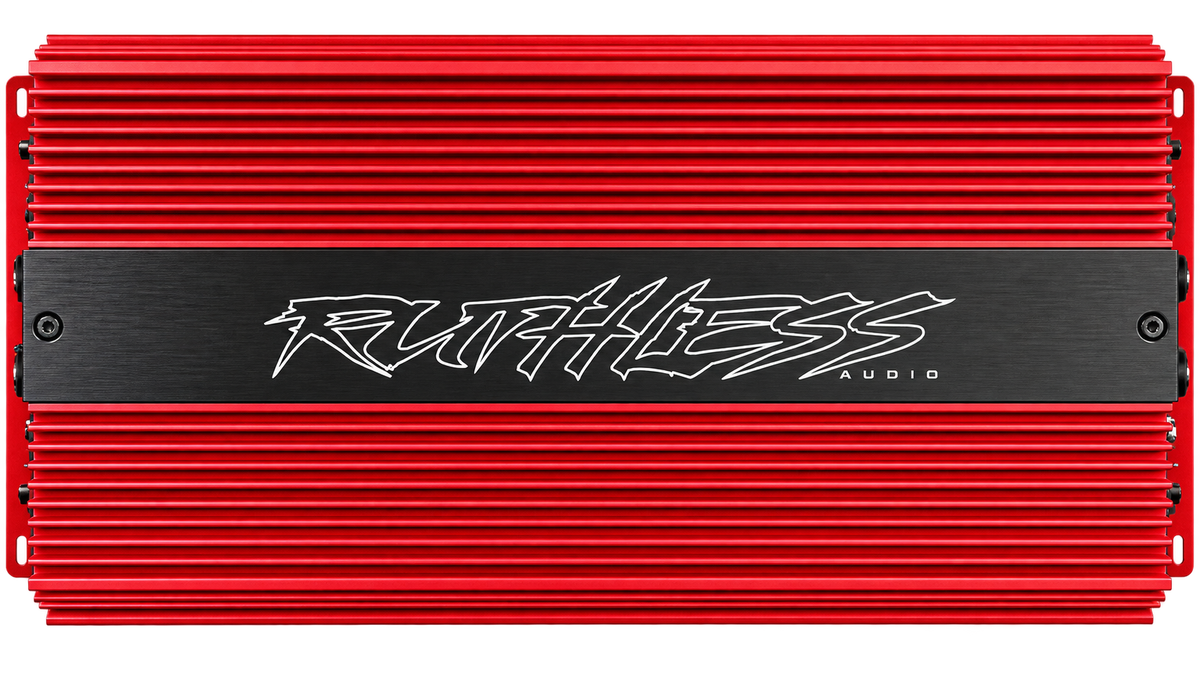

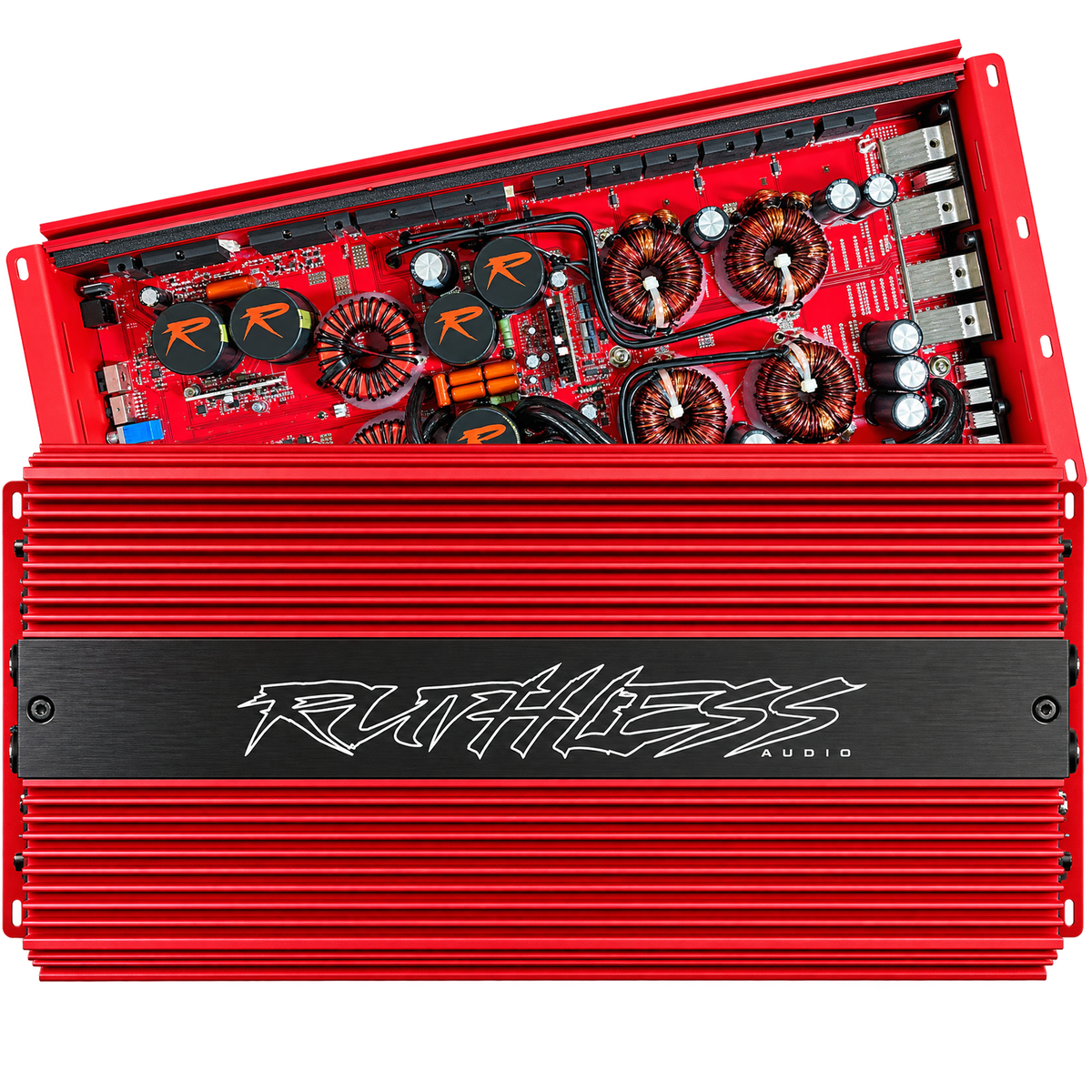

Ruthless Audio 5000.2 Red 2 Channel Amplifier
The Ruthless Audio 5000.2 Red 2-Channel Amplifier combines a bold red finish with the listed specifications of a full-size, low-impedance stereo amp. It is rated as 1-ohm stable per channel, with a 14.4V rated voltage and a 17V maximum operating voltage. For a visible custom installation, the color can be part of the build; for a working audio system, make the driver match and electrical plan the priority.
This listed Class-D amplifier offers two channels for appropriate speaker or subwoofer configurations. Its specifications include a 1-ohm impedance warranty, but coverage is subject to the manufacturer's current written terms and installation requirements. No per-channel RMS power figures are included in the available listing, so avoid selecting speakers by an assumed wattage based on the model number. Request the full technical sheet to verify output, current draw, wiring, and fusing before finalizing the system.
The 5000.2 Red measures 19" long, 9-1/4" wide, and 2-7/8" high. Check the mounting area for ventilation, secure fastening, and access to the power and signal connections. The previous guidance suggests a 1/0 AWG power and ground run and assessing alternator, Big 3 wiring, and battery capacity for demanding use. Those needs must be sized against the actual full specifications and vehicle, not assumed from its name or finish.
Why Choose the Ruthless Audio 5000.2 Red 2-Channel Amplifier?
- Red Finish — A visible color option for a custom audio installation.
- 1-Ohm Stable Per Channel — The stated minimum impedance for each channel when installed correctly.
- 1-Ohm Warranty Listing — Impedance coverage is listed; check the current terms and qualifying conditions.
- 14.4V Rated / 17V Maximum — Published electrical voltage specifications for planning your setup.
- Two Separate Channels — Options for suitable dual-speaker or dual-subwoofer use after output ratings are confirmed.
- Power-Match Before Purchase — Request verified RMS ratings before choosing drivers or deciding on a final impedance.
- Class-D Design — The amplifier class shown in the specifications.
- Full-Size Dimensions — A 19" × 9-1/4" × 2-7/8" chassis to account for in your mounting plan.
Subwoofer, Speaker & Electrical Recommendations
Calculate the load on each channel using the exact speaker or subwoofer voice-coil arrangement. Do not assume that two dual-voice-coil subs wired in parallel produce 1Ω per channel. For a front-stage setup, confirm the per-channel RMS rating before matching speaker power handling; a DSP may help with EQ, time alignment, and crossover control. If you want to bridge the two channels, obtain explicit bridging instructions and the minimum bridged impedance from the manufacturer first. The available specification table does not establish a bridged rating.
The previous listing suggests 1/0 AWG power and ground wiring, a Big 3 upgrade, a high-output alternator, and additional battery reserve for demanding installations. These are considerations, not universal minimums or a promise of a particular voltage under load. Request the amplifier's verified power, current, terminal, and fuse details and have the final wiring and charging capacity sized for your vehicle and listening use.
Full Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Finish | Red |
| Minimum Impedance | 1Ω Stable Per Channel |
| Impedance Warranty | 1Ω |
| Rated Voltage | 14.4V |
| Maximum Operating Voltage | 17V |
| Amplifier Class | Class-D |
| Length | 19" |
| Width | 9-1/4" (9.25") |
| Height | 2-7/8" (2.875") |
| Warranty | 1 Year Standard / 2 Year Extended Available |
Note: Per-channel RMS power ratings are not included in this listing. Contact us for a full spec sheet or additional technical details.
Frequently Asked Questions
Q: What is the difference between the 5000.2 Red and the standard 5000.2?
A: The available listings show the same channel count, minimum impedance, voltage range, amplifier class, and dimensions, with a red finish specified for this model. Confirm the complete spec sheets before assuming every performance detail is identical.
Q: Is the 5000.2 Red 1-ohm stable per channel?
A: The listed minimum is 1Ω per channel and the specifications mention a 1Ω impedance warranty. Review current manufacturer terms and installation requirements for coverage details.
Q: Can I bridge the 5000.2 Red to run a single subwoofer?
A: The available spec table does not list bridged power or a bridged minimum load. Confirm that this exact model supports bridging and obtain its wiring instructions before attempting it.
Q: What electrical upgrades do I need for the 5000.2 Red?
A: The answer depends on verified power and current requirements and your vehicle. The prior listing suggests 1/0 AWG wiring, a Big 3 upgrade, and additional charging or battery capacity for demanding builds, but have the actual setup sized from a full spec sheet.
