Ruthless Audio 7500.1 Red 7,500 Watt Monoblock Amplifier
The Ruthless Audio 7500.1 Red 7,500-Watt Monoblock Amplifier pairs a striking red finish with a listed 7,500W RMS at 1 ohm at 14.4V. It is intended for a substantial subwoofer system, where the drivers, enclosure, electrical supply, and installation all need to be planned together. Its specifications also list 0.5-ohm stability, making careful impedance and electrical planning especially important.

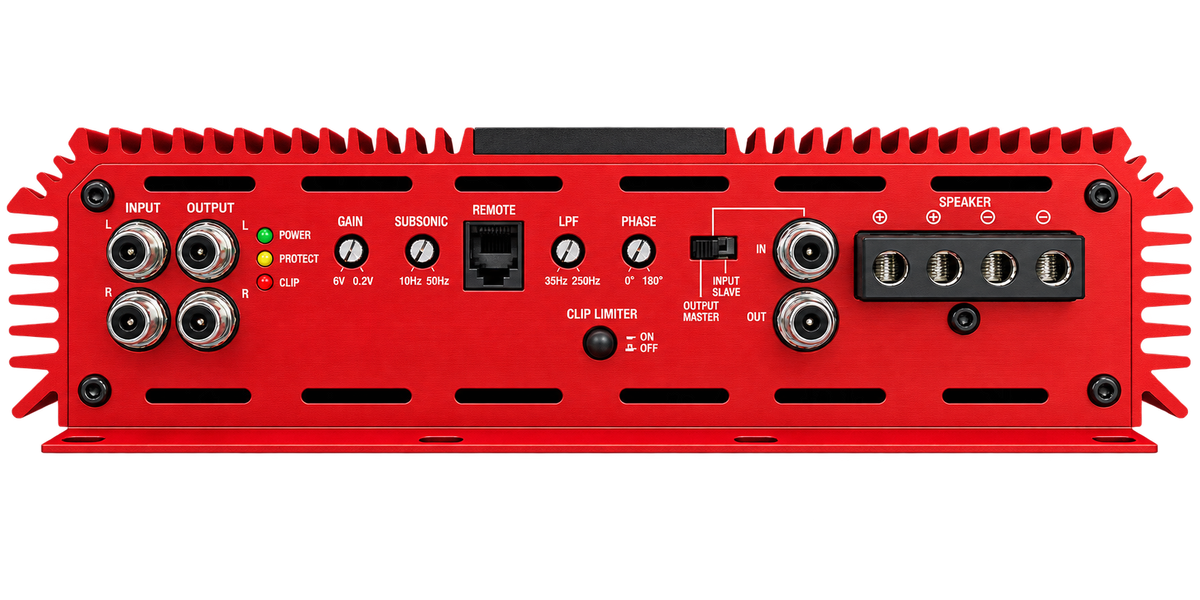

At 14.4V, published output is 7,500W RMS @ 1Ω, 4,000W RMS @ 2Ω, and 2,500W RMS @ 4Ω. The listed 10Hz–250Hz frequency response and 0–180° phase control support subwoofer integration. Tiffany-style locking RCA inputs help secure the signal leads, while 1/0 AWG power inputs accept large power cable. Input sensitivity is 0.2V–6V; published THD is less than 0.01% at 4Ω. The table lists a one-year 0.5Ω impedance warranty, but verify the current written conditions before relying on that coverage.
The Class-D 7500.1 Red measures 27" overall length with a 25.625" heatsink, 10.5" width, and 2.75" height. Set aside a secure, ventilated mounting location and room for appropriately sized cable and fusing. At this output level, do not treat a single alternator or cable recommendation as a guarantee of stable voltage; plan the charging, battery, grounding, and protection as a complete system.
Why Choose the Ruthless Audio 7500.1 Red Monoblock?
- 7,500W RMS @ 1 Ohm — Listed output at 14.4V for a high-power subwoofer build.
- 0.5-Ohm Stable — A low-impedance option when the complete wiring and electrical system are suitable for it.
- Red Finish — A distinct look for a visible custom installation.
- Tiffany-Style Locking RCA Inputs — Locking signal connectors help keep RCA cables seated.

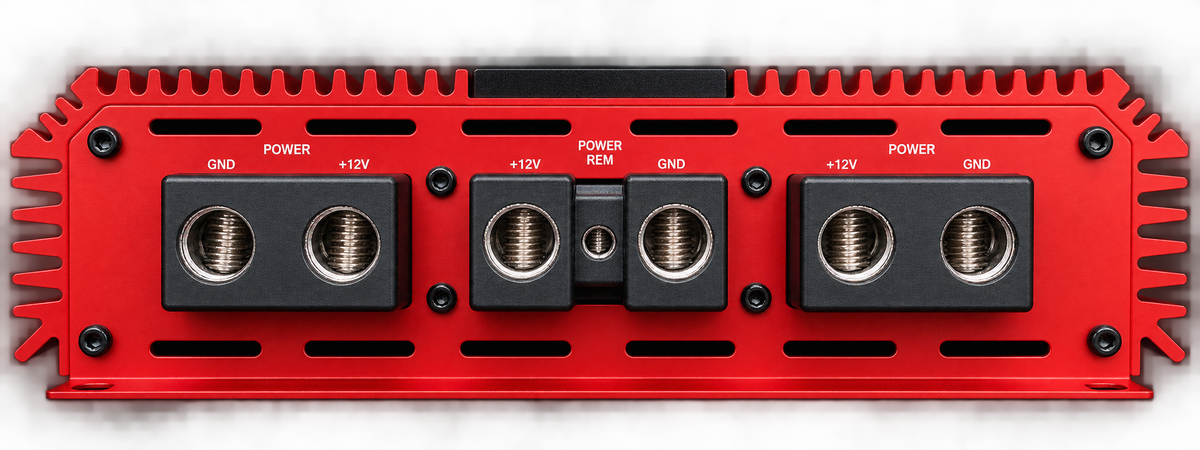

- 1/0 AWG Power Inputs — Large-gauge power terminals for the installation plan.
- Class-D Design — The amplifier class shown in the published specifications.
- 10Hz–250Hz Response and Phase Adjustment — Listed low-frequency range and 0–180° control for system integration.
- THD < 0.01% @ 4Ω — Published distortion figure at its stated impedance.
Subwoofer & Electrical Recommendations
Pair the 7500.1 Red with subwoofers whose combined RMS handling and final wired impedance suit the output at your chosen load. The previous guidance points toward high-excursion drivers rated at 2,500W RMS or more, but the number and type of drivers depend on the whole build. Calculate the final load from each subwoofer's voice coils and every series/parallel connection. Do not assume two dual-voice-coil subs automatically produce 1Ω or 0.5Ω. Confirm the exact final load and manufacturer's instructions before using the half-ohm setting.
A system designed around 7,500W RMS needs an electrical design, not a one-size-fits-all shopping list. The earlier listing suggests Big 3 wiring in 1/0 AWG or larger, a 300A+ alternator, additional AGM or lithium battery capacity, and possibly a capacitor bank. Those suggestions are not proof that a given vehicle can sustain rated output or remain above a particular voltage. Have a qualified installer size charging, battery reserve, cable runs, fusing, and ground paths using the manufacturer's current requirements and your intended duty cycle. If your enclosure needs subsonic filtering, confirm the available control in your DSP or crossover; use the phase control when integrating the sub stage.
Full Specifications
| Specification | Value |
|---|---|
| RMS Power @ 1Ω (14.4V) | 7,500W |
| RMS Power @ 2Ω (14.4V) | 4,000W |
| RMS Power @ 4Ω (14.4V) | 2,500W |
| Minimum Impedance | 0.5Ω Stable |
| Impedance Warranty | 0.5Ω (1 Year) |
| Amplifier Class | Class-D |
| Channels | 1 (Monoblock) |
| Finish | Red |
| Frequency Response | 10Hz – 250Hz |
| Phase Control | 0° – 180° |
| THD | < 0.01% @ 4Ω |
| Input Sensitivity | 0.2V – 6V |
| RCA Inputs | Tiffany-Style Locking RCA |
| Power Input Gauge | 1/0 AWG |
| Overall Length | 27" |
| Heatsink Length | 25.625" |
| Width | 10.5" |
| Height | 2.75" |
| Warranty | 1 Year Standard / 2 Year Extended Available |
Frequently Asked Questions
Q: Is the Ruthless Audio 7500.1 Red 0.5-ohm stable?
A: Its specifications list 0.5Ω stability and a one-year impedance warranty at that load. Confirm the current warranty terms and that the vehicle, subwoofers, and installation meet the manufacturer's requirements.
Q: What is the difference between the 7500.1 Red and the standard 7500.1?
A: This listing specifies a red finish. Compare the complete specification sheets for both models before assuming that color is their only difference.
Q: What electrical upgrades do I need for the 7500.1 Red?
A: Have the charging system, battery reserve, power and ground cable, and fusing sized for the vehicle and intended use. A 300A+ alternator or 1/0 AWG Big 3 upgrade may be part of the plan, but neither alone guarantees full-output voltage.
Q: What subwoofers pair best with the Ruthless Audio 7500.1 Red?
A: Choose high-power drivers with suitable combined RMS handling and coil configurations that produce the intended final load. Verify the enclosure and electrical plan, especially if aiming for 0.5Ω.
