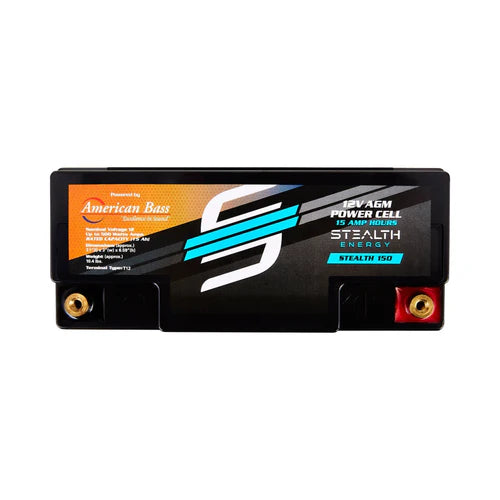

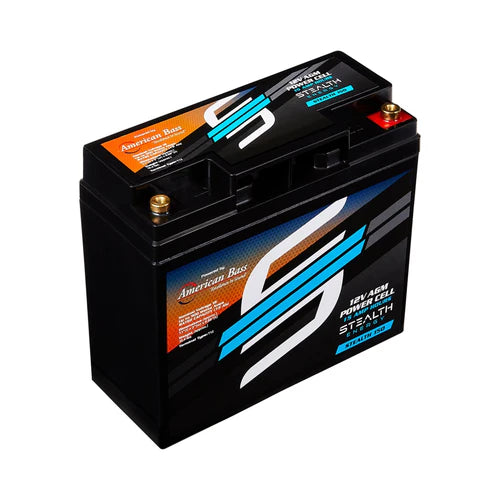

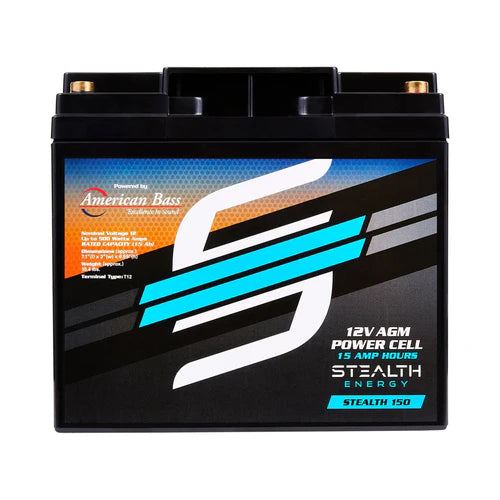

Stealth Energy Stealth 150 Battery
Stealth Energy Stealth 150 Battery
Stealth Energy Stealth 150 Battery
1/3

Stealth Energy Stealth 150 Battery

$89.99
$89.99 $99.99
Save $10.00 Sold out
Shipping calculated at checkout.
NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 15.0AH
APPROX WEIGHT Approx 4.9 kg (10.8lbs)
TERMINAL T12
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 225A (5s)
INTERNAL RESISTANCE APPROX 18mΩ
NOMINAL OPERATING TEMP. RANGE 25 3 C (77 5 F )
DIMENSION
  • Length: 181.5 2mm (7.14 inches)
  • Width: 76.5 2mm (3.01 inches)
  • Container Height: 167.5 2mm (6.59 inches)
  • Total Height (with Terminal): 167.5 2mm (6.59 inches)
RATED CAPACITY
  • 15.0 AH/0.75A: (20hr ,1.80V/cell,25 C/77 F)
  • 14.0 AH/1.40A: (10hr ,1.80V/cell,25 C/77 F)
  • 12.8 AH/2.55A: (5hr ,1.75V/cell,25 C/77 F)11.5 AH/3.83A: (3hr ,1.75V/cell,25 C/77 F)
  • 9.42 AH/9.42A: (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge: -15 50 C (5 122 F)
  • Charge: 0 40 C (32 104 F)
  • Storage: -15 40 C (5 104 F)

CYCLE USE
  • Initial Charging Current less than 4.5A.Voltage
  • 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

 STANDBY USE
  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE
  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
